The Battery Energy Storage System (BESS) is a foundational technology in the modern energy landscape, enabling grid stability, renewable energy integration, and energy independence. As deployment accelerates globally, the logistics of moving these high-value, technologically sensitive assets from factory to project site have become a critical, yet often underestimated, phase. The packaging and transportation of a Battery Energy Storage System are not mere afterthoughts; they are engineering disciplines that directly impact project viability, safety, and profitability.
A failure in this final logistical mile can be catastrophic. An improperly packaged Battery Energy Storage System can suffer irreparable damage from shock or environmental exposure, while a transport violation can lead to severe fines, indefinite delays, and brand damage. From a procurement and engineering perspective, ensuring every Battery Energy Storage System is packaged and transported in full compliance with stringent international regulations is a non-negotiable aspect of risk management. This guide provides a detailed, expert-level overview of the essential requirements for packaging and transporting a Battery Energy Storage System, ensuring its safe and efficient delivery.
Key Elements of Battery Energy Storage System Packaging
The packaging for a Battery Energy Storage System is its first line of defense. It must be engineered to protect against a range of hazards while adhering to environmental and regulatory standards.
Design and Material Selection
The choice of packaging materials is a critical engineering decision based on the size, weight, and components of the Battery Energy Storage System.

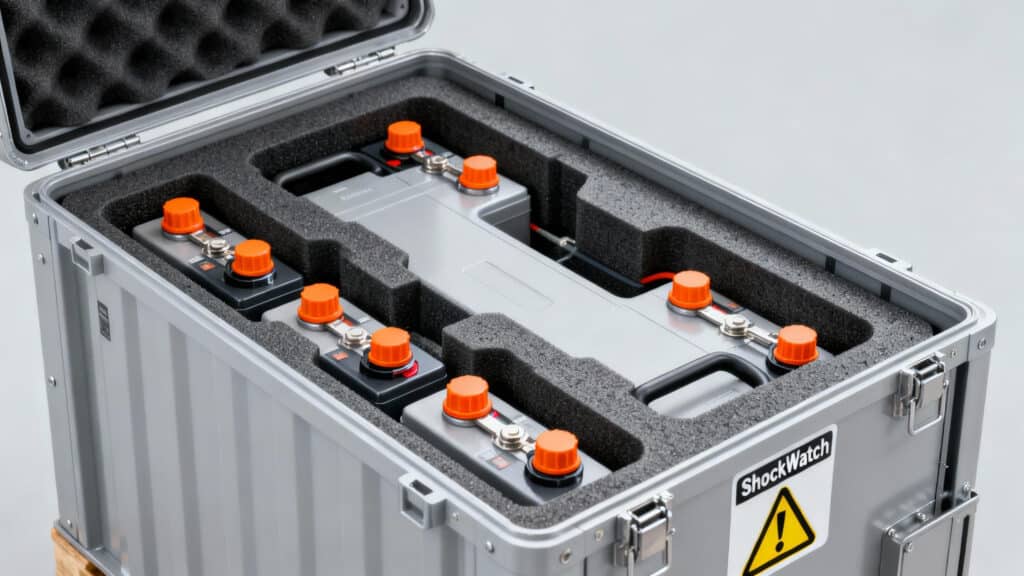

Cushioning and Damping: To protect sensitive electronics and battery cells from vibration and shock, we utilize high-performance foam materials. For heavy-duty applications, custom-molded expanded polypropylene (EPP) or high-density polyethylene (HDPE) inserts are specified for their superior shock absorption and durability. These are engineered based on the specific fragility (G-force tolerance) of the Battery Energy Storage System components.
Outer Crate and Enclosure: For individual modules or smaller systems, UN-rated plywood or heat-treated (ISPM 15 compliant) timber crates are standard. For a large, containerized Battery Energy Storage System, the steel container itself is the primary outer packaging, but extensive internal blocking and bracing are required to prevent movement.
Environmental and Material Compliance: From a procurement standpoint, all packaging materials must be compliant with international environmental standards. This includes adherence to the RoHS (Restriction of Hazardous Substances) directive, which restricts the use of specific hazardous materials. For shipments to the European Union, materials must also comply with REACH (Registration, Evaluation, Authorisation and Restriction of Chemicals) regulations. This due diligence is crucial for avoiding customs issues and ensuring corporate responsibility.
Protective Measures
A robust packaging design for a Battery Energy Storage System incorporates multiple layers of protection:
Electrical Protection: This is paramount. All terminals must be securely covered with non-conductive caps to prevent short-circuiting. The Battery Energy Storage System must be shipped in a state of electrical disconnect, and regulations often mandate a specific State of Charge (SoC). For air freight, the IATA Dangerous Goods Regulations typically require lithium-ion batteries to be shipped at an SoC of 30% or less.
Mechanical Protection: Internal blocking and bracing are engineered to prevent any movement of the Battery Energy Storage System within its outer packaging. For high-value units, we specify the use of shock and tilt indicators (such as ShockWatch® labels) on the exterior of the crate. These provide a visual, tamper-proof record if the shipment was subjected to potentially damaging impacts, which is invaluable for quality control and insurance claims.
Fire and Leakage Containment: While modern lithium-ion BESS designs are exceptionally safe, the packaging must account for worst-case scenarios. This includes using fire-retardant lining materials within the crate. For any components that contain liquid, such as some cooling systems, the packaging must include a sufficient amount of absorbent material like vermiculite to contain any potential leaks. Every aspect of the packaging design for a Battery Energy Storage System must prioritize safety.
Standard Requirements for Battery Energy Storage System Transportation
Transporting a Battery Energy Storage System means shipping what is classified as a Class 9 Dangerous Good. This classification mandates strict adherence to a complex web of international and mode-specific regulations.
Choice of Transportation Mode
The selection of transport mode for a Battery Energy Storage System is a trade-off between speed, cost, and regulatory complexity.
Sea Freight: This is the most common method for transporting a large Battery Energy Storage System. It is cost-effective but slow, exposing the cargo to a harsh marine environment (humidity, salt spray) and mechanical stresses from ship movement. Proper container selection (clean, dry, and structurally sound) and expert lashing and securing within the container are critical.
Land Freight (Road/Rail): This is used for domestic transport or as part of a multi-modal journey. The primary challenges are road vibrations and securing the load to comply with department of transportation (e.g., US DOT) regulations. Air-ride suspension trailers are often specified for a sensitive Battery Energy Storage System to dampen vibrations.
Air Freight: The fastest and most expensive option, typically reserved for urgent, high-value components or prototypes of a Battery Energy Storage System. Air transport is governed by the extremely strict IATA regulations, which place severe limits on the weight, size (in Watt-hours), and SoC of lithium batteries allowed on both passenger and cargo aircraft.
Transportation Safety Standards and Regulations
Compliance is not optional. Every Battery Energy Storage System shipment must be supported by a portfolio of test reports and declarations.
UN/DOT 38.3: This is the foundational safety standard for the transport of all lithium batteries. As detailed in the UN Manual of Tests and Criteria, every battery and cell design must pass a rigorous series of eight tests simulating transport conditions (e.g., altitude, thermal cycling, vibration, shock, short circuit, impact). Without a valid UN38.3 certificate, it is illegal to transport a Battery Energy Storage System.
International Maritime Dangerous Goods (IMDG) Code: For sea freight, the IMDG Code, managed by the International Maritime Organization (IMO), provides the framework for packaging, labeling, and stowing dangerous goods. Shippers must complete a Multimodal Dangerous Goods Form declaring the nature of the Battery Energy Storage System.
Other Mode-Specific Regulations: For air, the IATA DGR is the global standard. For road transport in Europe, the ADR agreement applies, while rail is governed by RID. Each regulation has specific requirements for labeling, documentation, and sometimes, driver training. Navigating the transport of a Battery Energy Storage System requires expertise in each of these regulatory frameworks.
Temperature Control and Environmental Requirements in BESS Transportation
The performance and lifespan of a Battery Energy Storage System are intrinsically linked to its temperature. Maintaining a controlled environment during transport is crucial for delivering the asset in optimal condition.
The Importance of Temperature Control
Extreme temperatures during transit can cause irreversible damage to a Battery Energy Storage System.
High Temperatures (>45°C): Accelerate chemical degradation of battery cells, leading to a permanent loss of capacity. In extreme cases, it can increase the risk of thermal runaway.
Low Temperatures (< -10°C): Can cause the electrolyte to become sluggish or freeze, and charging a battery in sub-zero conditions can lead to lithium plating, which is a serious safety hazard and causes permanent damage.
For these reasons, the Battery Energy Storage System must be kept within a specified temperature range throughout its journey. This often necessitates the use of refrigerated (reefer) containers for long sea voyages through warm climates.
Humidity and Climate Adaptability
Humidity poses a significant risk, especially during sea transport. Condensation inside a container (“container rain”) can lead to corrosion of electrical contacts and damage to control systems. To mitigate this, shipments of a Battery Energy Storage System must include industrial-grade desiccants to absorb moisture. For added protection of metal components, Vapor Corrosion Inhibitor (VCI) films or emitters are often used to create a protective atmosphere inside the packaging of the Battery Energy Storage System.
Compliance and Certification Requirements for BESS Transportation
A shipment’s journey can be halted by a single missing label or incorrect document. Meticulous attention to compliance is essential.
Documentation and Certification Portfolio
Every international shipment of a Battery Energy Storage System must be accompanied by a precise set of documents:
UN38.3 Test Certificate: Proof that the Battery Energy Storage System design is certified as safe for transport.
Material Safety Data Sheet (MSDS or SDS): A standardized document detailing the composition, hazards, and emergency response procedures for the Battery Energy Storage System.
Shipper’s Declaration for Dangerous Goods: A formal declaration signed by a certified individual, accurately describing the cargo, its classification (e.g., UN3480 for Lithium-Ion Batteries), and confirming it is packaged and labeled according to the relevant regulations (IATA, IMDG, etc.).
Correct Labeling and Marking: The outer packaging of the Battery Energy Storage System must display the correct Class 9 Dangerous Goods label, the UN number, a contact number for emergency response, and sometimes, a “Cargo Aircraft Only” label.
Common Transportation Errors and How to Avoid Them
From our field experience, several recurring errors cause the most significant delays and risks:
Incorrect Declaration: Misclassifying the Battery Energy Storage System or providing an inaccurate weight or Watt-hour rating.
Improper Packaging: Using non-UN-rated packaging for a regulated shipment.
Missing or Obscured Labels: Labels falling off or being covered by other shipping labels. All markings must be clear and durable.
Failure to Segregate Cargo: Storing the Battery Energy Storage System next to incompatible dangerous goods inside a container.
The solution is a rigorous pre-shipment checklist and partnering only with freight forwarders who have proven expertise in handling a Battery Energy Storage System and other Class 9 Dangerous Goods.
Tracking and Monitoring Technology in Packaging and Transport
For a high-value asset like a Battery Energy Storage System, knowing its location and condition during transit is no longer a luxury—it’s a necessity.
Application of IoT in Battery Energy Storage System Logistics
Modern Internet of Things (IoT) devices provide unprecedented visibility into the supply chain of a Battery Energy Storage System.
GPS/GSM Trackers: These devices are placed inside the container or crate and provide real-time location data anywhere in the world. This is critical for asset management, theft prevention, and accurate ETA prediction.
RFID and Bluetooth Low Energy (BLE) Tags: These are used for automated tracking within warehouses, ports, and laydown yards, streamlining inventory management as the Battery Energy Storage System moves through various logistical checkpoints.
Real-Time Condition Monitoring
The most advanced tracking systems integrate environmental sensors that provide a live feed of data about the conditions inside the packaging of the Battery Energy Storage System. These sensors monitor:
Temperature and Humidity: Sending alerts if conditions deviate from the pre-set safe range, allowing for potential intervention.
Shock and Vibration: A 3-axis accelerometer records any significant impacts. This data is invaluable for identifying potential damage before the Battery Energy Storage System is even unpacked.
Light Exposure / Door Status: Sensors can detect if a container door has been opened, alerting to potential tampering or customs inspections.
This stream of data provides an unbroken chain of custody and a complete environmental history of the Battery Energy Storage System‘s journey.
Conclusion
The successful deployment of a Battery Energy Storage System depends entirely on its integrity upon arrival at the project site. The complex and highly regulated processes of packaging and transportation are a critical part of the value chain that demands expert engineering, procurement, and logistics management.
From the selection of RoHS-compliant cushioning materials to the meticulous completion of a Shipper’s Declaration under IATA rules, every step is vital. Adherence to international standards like UN38.3 is the baseline, while the integration of advanced IoT monitoring represents best practice in protecting a modern Battery Energy Storage System. Ultimately, a collaborative effort between manufacturers, logistics partners, and project developers is essential to navigate the complexities of shipping a Battery Energy Storage System, ensuring these cornerstone assets of our energy future arrive safely, compliantly, and ready for commissioning.
